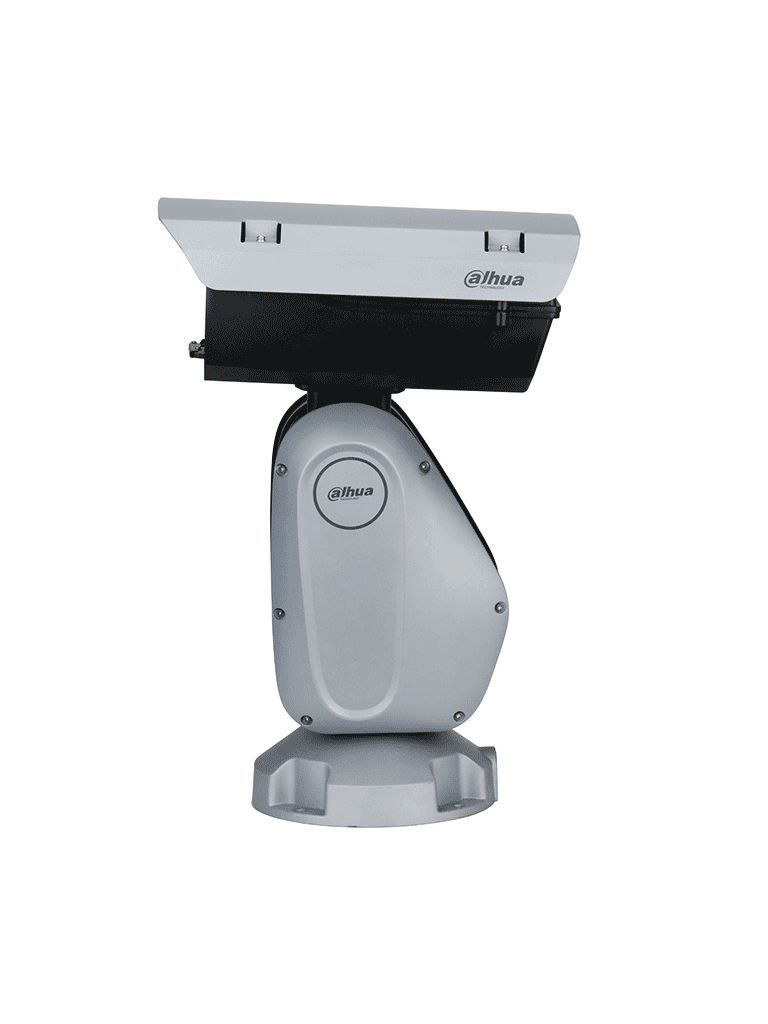

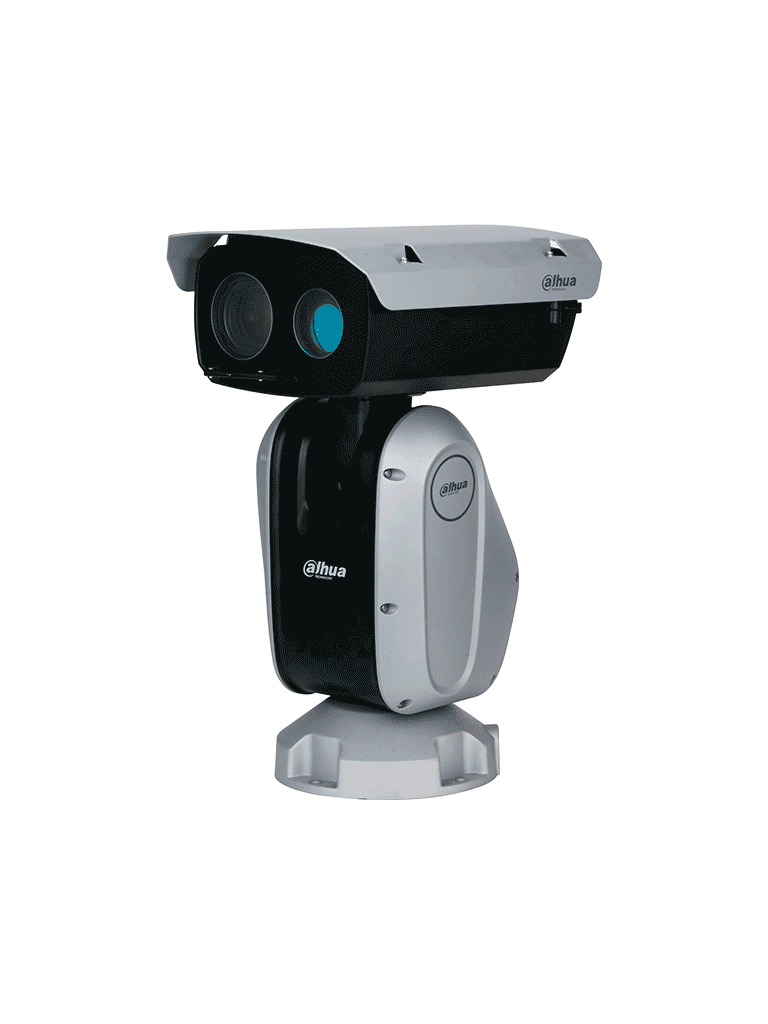

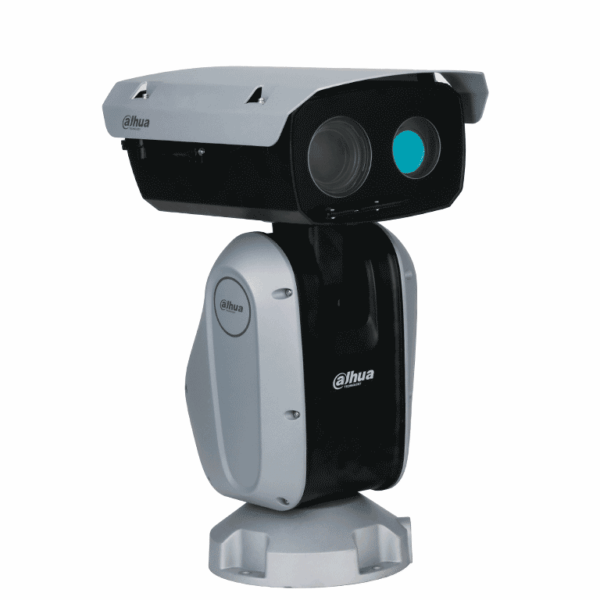

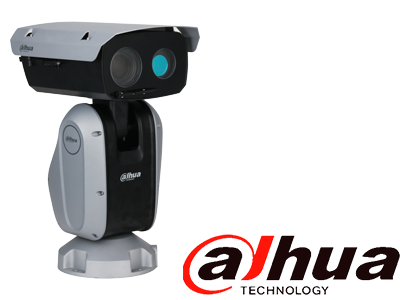

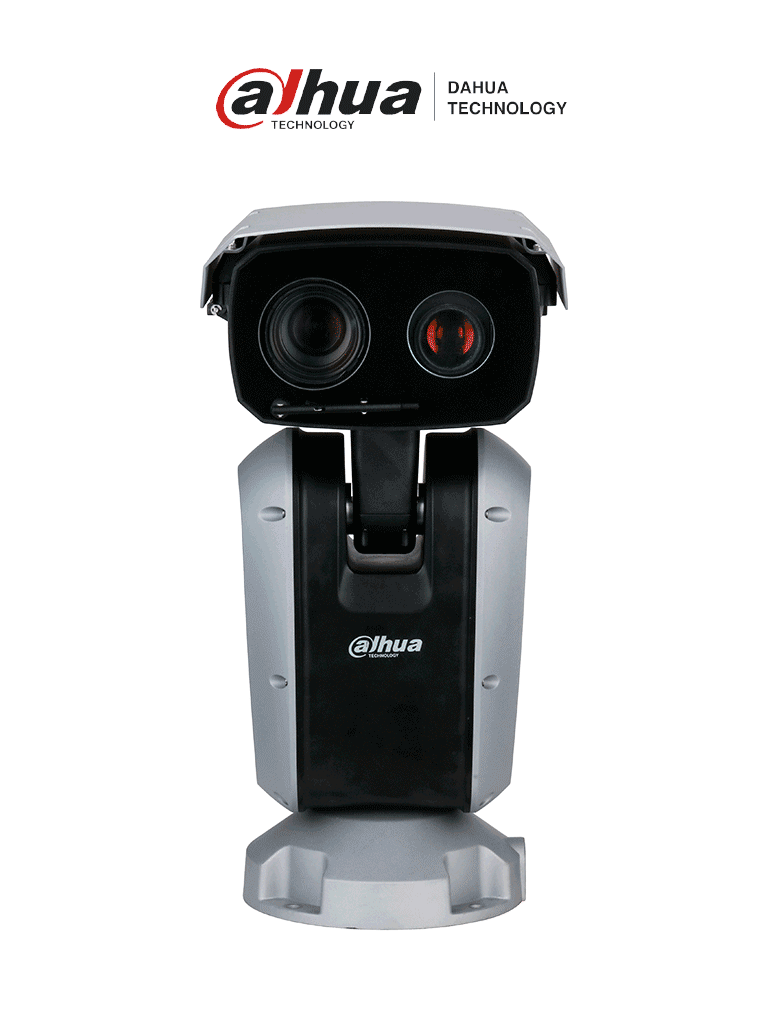

La Dahua PTZ85848-HNF-PA es una cámara PTZ de posicionamiento avanzado diseñada para entornos de seguridad exigentes como aeropuertos, fronteras, zonas industriales o centros logísticos. Su sensor STARVIS™ CMOS de 1/1.8” captura video en 8 megapíxeles con una claridad excepcional tanto de día como de noche.
Características destacadas:
Resolución 8MP (25/30 fps) – Video de ultra alta definición en tiempo real
Zoom óptico 48x – Seguimiento detallado a grandes distancias sin pérdida de calidad
Tecnología Starlight + IR – Imágenes en color en condiciones de poca luz y visión nocturna IR hasta 400 metros
Codificación H.265 – Compresión eficiente sin sacrificar calidad
Audio bidireccional – Comunicación en tiempo real con los sitios monitoreados
Protección perimetral inteligente – Análisis de cruce de línea, intrusión, detección de objetos abandonados, etc.
Auto-tracking – Seguimiento automático de objetivos en movimiento
Reconocimiento facial – Tecnología de análisis facial incorporada
Grado de protección IP67 – Resistente al agua, polvo y condiciones adversas
Sistema de posicionamiento WizMind – Alta precisión, velocidad y rango de rotación
Esta cámara PTZ es ideal para vigilancia urbana, protección de infraestructura crítica y monitoreo de grandes perímetros, combinando rendimiento óptico y analítica inteligente en un solo equipo.
-
-
Camera Image Sensor 1/1.8″ CMOS Pixel 8 MP Max. Resolution 3840 (H) × 2160 (V) ROM 8 GB RAM 2 GB Electronic Shutter Speed 1/1 s–1/30,000 s Scanning System Progressive Min. Illumination Color: 0.005 lux@F1.4
B/W: 0.0005 lux@F1.4
0 lux (IR light on)Illumination Distance 400 m (1,312.34 ft) (IR) Illuminator On/Off Control Zoom Prio; Manual; Off Illuminator Number 8 (IR) Wiper Yes Lens Focal Length 6.25 mm–300 mm Max. Aperture F1.4–F4.5 Field of View H: 64.9°–1.8°; V: 38°–1.3°; D: 71.3°–1.9° Optical Zoom 48× Focus Control Auto; semi-auto; manual Close Focus Distance 0.5 m–2 m (1.64 ft–6.56 ft) Iris Control Auto; manual DORI Distance Detect Observe Recognize Identify 6,000 m (19,685.04 ft) 2,381 m (7,811.68 ft) 1,200 m (3,937.01 ft) 600 m (1,968.50 ft) DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. PTZ Pan/Tilt Range Pan: 0° to 360° endless
Tilt: –45° to +90°Manual Control Speed Pan: 0.1°/s–160°/s
Tilt: 0.1°/s–60°/sPreset Speed Pan: 160°/s; Tilt: 60°/s Preset 300 Tour 8 (up to 32 presets per tour) Pattern 5 Scan 5 Power-off Memory Yes Idle Motion Preset; Pattern; Tour; Scan PTZ Protocol DH-SD Pelco-P/D (auto recogniton)
Intelligence Video Metadata Support human body, human face, motor vehicle and non-motor vehicle image capture and attributes extraction. IVS (Perimeter Protection) Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification. Face Recognition Yes Video Video Compression H.265; H.264M; H.264H; MJPEG; Smart H.265; Smart H.264 Streaming Capability 3 streams Resolution 8M (3840 × 2160); 4M (2560 × 1440); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Video Frame Rate Main stream: 8M/4M/1080p/960p/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/960p/720p (1–25/30 fps)Bit Rate Control CBR; VBR Video Bit Rate H.264: 3328-16384 kbps
H.265: 1280-9984 kbpsDay/Night Auto (ICR); Color; B/W BLC Yes WDR Yes HLC Yes White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp Gain Control Auto; manual Noise Reduction 2D NR; 3D NR Motion Detection Yes Region of Interest (RoI) Yes Defog Optical Digital Zoom 16× Image Rotation 180° Privacy Masking Up to 24 areas can be set, with up to 8 areas in the same view S/N Ratio ≥55 dB Audio Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; PCM Network Network Port RJ-45 (10/100 Base-T) Network Protocol HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; IGMP; RTP; PPPoE; RTMP; TCP Interoperability ONVIF (Profle S&G&T); GB/T28181; CGI Streaming Method Unicast; Multicast User/Host 20 (total bandwidth: 64 M) Storage FTP; Micro SD card (512 GB); NAS Browser IE 7 and later versions
Chrome 45 and later versions
Firefox 52ESR and earlier versions
SafariManagement Software Smart PSS; DSS; IVSS Mobile Client iOS; Android Port Analog Output 1 channel (CVBS output, BNC) RS-485 1 (baud rate: 1200 bps–115200 bps) Audio Input 1 channel (LINE IN, bare wire) Audio Output 1 channel (LINE OUT, bare wire) Two-way Audio Yes Alarm Input 7 (on-off value input: 0–5 VDC) Alarm Output 2 Alarm Linkage Capture; preset; tour; pattern; recordings on SD card; alarm digital input; client E-map; send email Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; decoder state detection; memory card state detection; memory space detection; power exception detection Power Power Supply 36 VDC, 5 A (± 25%) Power Consumption Basic: 22 W
Max.: 63 W (illuminator + wiper + PTZ)Environment Operating Temperature –40 °C to +70 °C (–40 °F to 158 °F) Operating Humidity ≤95% Protection IP67; TVS 6000 V lightning proof; surge protection; voltage transient protection Structure Casing ADC12 Product Dimensions 344.6 mm × 252.2 mm × 499.8 mm (13.57″ × 9.93″ × 19.68″) (L × W × H) Net Weight 15.4 kg (33.95 lb) Gross Weight 23.7 kg (52.25 lb)
-
